You may be familiar with Task Lighting and Power’s popular Angled Power Strips — power at your fingertips, tucked out of sight. Utilized mostly in kitchen applications, these customized under cabinet power strips are designed to preserve the beauty of your backsplash or island, providing under cabinet outlets that are tucked away rather than cutting into expensive tile or cabinetry. Made in the USA in four finish options, ten standard lengths from 9″ to 72″, and with options like integrated USB-A/C fast charging, switches for controlling lights or appliances, and custom device placement, Task Lighting’s under cabinet power strips have quickly grown to become one of the best-selling cabinet outlet solutions at PROLIGHTING. This selection guide will walk you through selecting an Angled Power Strip perfect for any job.

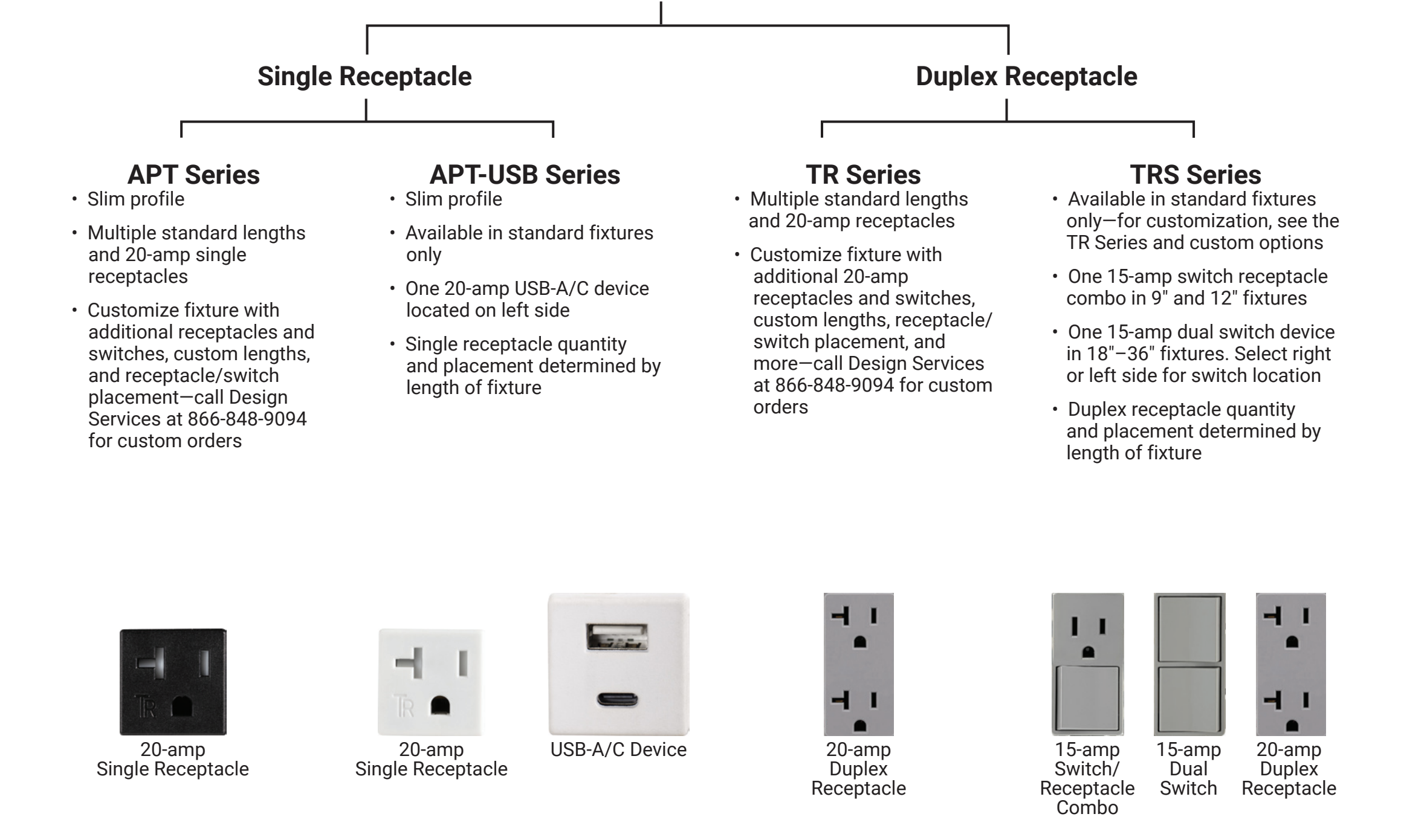

Step 1: Do you want Single or Duplex Receptacles?
Single – The Single Receptacle APT Series has a slim profile and is available in multiple standard lengths and 20 amp tamper-resistant receptacles. The patented APT Angled Power Strip mounts under cabinets and countertops as under counter outlets, providing an ideal alternative to standard outlets that are cut into tile, glass, wood panels, metal and other solid surfaces. The fixture is easily hidden while the angle offers easy access to receptacles. Custom options include length, additional receptacles, and switches for lights and garbage disposal.

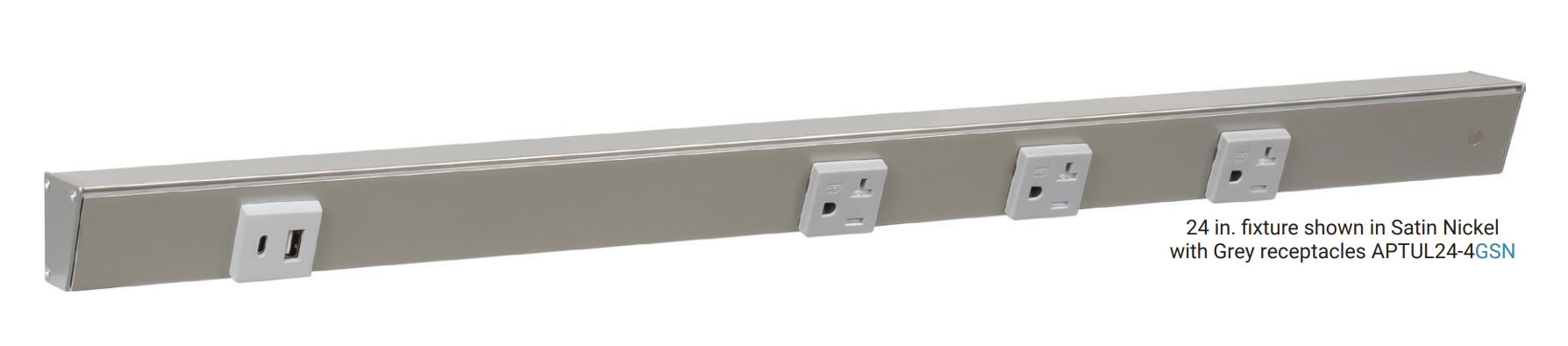

Single with USB – The APT-USB Series USB power strip combines the slim 1-1/2″ profile of the APT Series with integrated USB-A/C fast charging. Each power strip with USB includes one USB-A/C device supporting up to 18W fast charging (9V and 12V), plus 20 amp tamper-resistant single receptacles. Available in standard lengths from 18″ to 72″. The USB device can be located on either the left or right side of the fixture, with wire entry on the opposite side.
Duplex – The patented TR Series is available in multiple standard lengths and 20 amp duplex tamper resistant receptacles. Use as under cabinet outlets in kitchens and kitchen island outlets on islands, vertically along the sides of a bathroom mirror, on the top of an office desk, in the shop, craft room, home entertainment center and more. Customize the TR Series with additional 20 amp receptacles and switches, custom lengths, receptacle/switch placement, and more.
Duplex – The patented TRS Series is available in standard lengths only. Fixture comes with one 15 amp outlet/single pole switch combo in 9″ and 12″ fixtures, and one 15 amp dual switch device in 18″ – 36″ fixtures. The switch does not affect the receptacles on the TRS fixture, so power is available even when the switch is off. Switching options are endless — control lights, appliances, and more. Select right or left side for switch location. Duplex receptacle quantity and placement are determined by the length of fixture.
Step 2: Select the Desired Standard Length for your Fixture
- 9″ (229 mm) APT9-2Color-P-Finish-Position*
- 12″ (305 mm) APT12-2Color-P-Finish-Position*
- 18″ (457 mm) APT18-3Color-P-Finish-Position*
- 24″ (610 mm) APT24-4Color-P-Finish
- 30″ (762 mm) APT30-4Color-P-Finish
- 36″ (914 mm) APT36-4Color-P-Finish
- 42″ (1067 mm) APT42-5Color-P-Finish
- 48″ (1219 mm) APT48-5Color-P-Finish
- 60″ (1524 mm) APT60-7Color-P-Finish
- 72″ (1829 mm) APT72-8Color-P-Finish
*Position indicates Left (L) or Right (R) side wire entry
- 18″ (457 mm) APTULocation*18-2ColorFinish
- 24″ (610 mm) APTULocation*24-4ColorFinish
- 30″ (762 mm) APTULocation*30-5ColorFinish
- 36″ (914 mm) APTULocation*36-6ColorFinish
- 42″ (1067 mm) APTULocation*42-6ColorFinish
- 48″ (1219 mm) APTULocation*48-6ColorFinish
- 60″ (1524 mm) APTULocation*60-8ColorFinish
- 72″ (1829 mm) APTULocation*72-9ColorFinish
*Location indicates Left (L) or Right (R) side USB device placement. Wire entry is always opposite of USB device location.
- 9″ (229 mm) TR9-1ColorD-P-Finish
- 12″ (305 mm) TR12-1ColorD-P-Finish
- 18″ (457 mm) TR18-2ColorD-P-Finish
- 24″ (610 mm) TR24-2ColorD-P-Finish
- 30″ (762 mm) TR30-2ColorD-P-Finish
- 36″ (914 mm) TR36-2ColorD-P-Finish
- 42″ (1067 mm) TR42-3ColorD-P-Finish
- 48″ (1219 mm) TR48-3ColorD-P-Finish
- 60″ (1524 mm) TR60-4ColorD-P-Finish
- 72″ (1829 mm) TR72-4ColorD-P-Finish
TRS Series
- 9″ (229 mm) TRS9-1Color–Finish
- 12″ (305 mm) TRS12-1Color–Finish
- 18″ (457 mm) TRS18-2Color–Finish–Switch*
- 24″ (610 mm) TRS24-3Color–Finish–Switch*
- 30″ (762 mm) TRS30-3Color–Finish–Switch*
- 36″ (914 mm) TRS36-3Color–Finish–Switch*
*Switch indicates Left Side (LS) or Right Side (RS) switch location

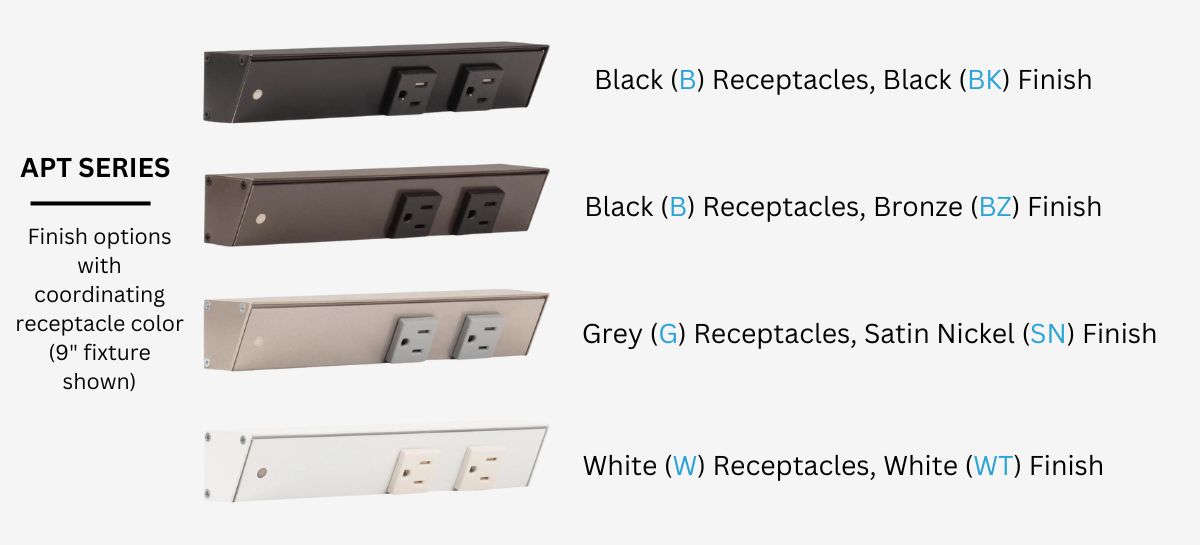

Step 3: Select Finish Option with Coordinating Receptacle Color
Lastly, choose a finish color with coordinating receptacle (options are outlined above). Things to keep in mind when selecting a finish: Blend your backsplash outlets with tile color to reduce fixture visibility, coordinate with cabinet color, or match nearby hardware. The low profile power strip design ensures minimal visual impact in any application.
Don’t see what you’re looking for in the standard options? Ask the PROs! We may be able to help you customize a Slim Profile (APT Series) or Duplex Receptacle (TR Series) Angled Power Strip.
Need power and lighting? Task Lighting makes it easy with their Lighted Power Strip Fixtures — combining the patented Angled Power Strip fixture with the “no dot effect” sempriaLED™ Lighting, the Lighted Power Strip is perfect for kitchens, home workshops, and bathrooms to add multiple outlets to any area.
Use the Lighted Power Strip (DV Series) with a built-in power supply as an easy direct replacement for stand-alone fluorescent lighting. Or, check out the Lighted Power Strip (RM Series). Featuring a higher light output (600 lumens per foot), the RM Series is a tamper-resistant slim profile Angled Power Strip with Remote Power Supply and sempriaLED™ Lighting with a rigid LED board for “no dot” effect.
All mounting hardware is included for Task Lighting & Power products. All receptacles are tamper resistant. Please note: Angled Power Strip products require installation by a licensed electrician.
Ready to preserve your backsplash and add convenient power? Shop Task Lighting & Power Angled Power Strips or contact our lighting specialists for help selecting the perfect solution.
